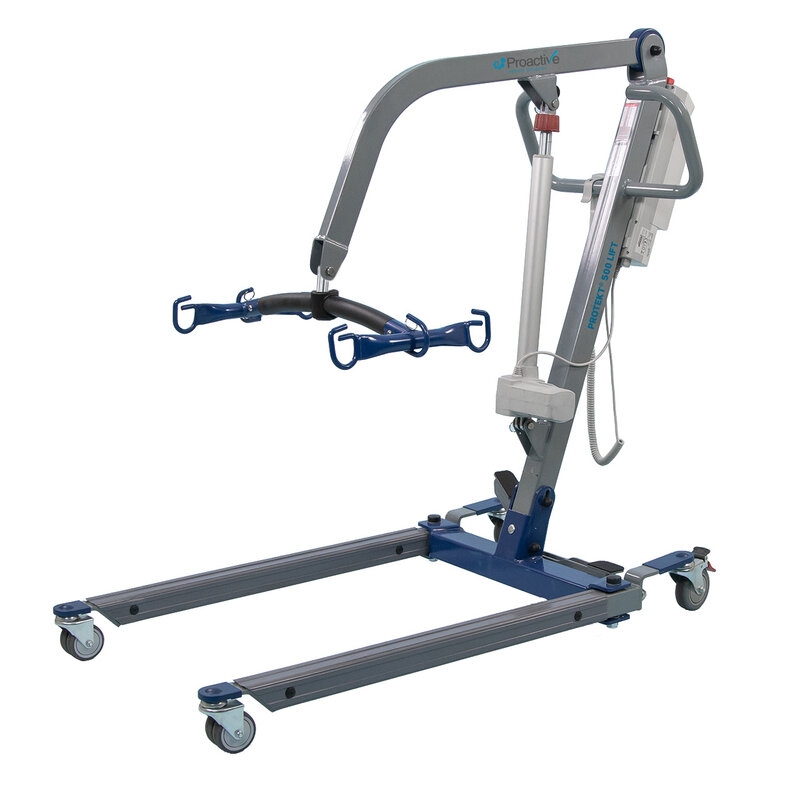

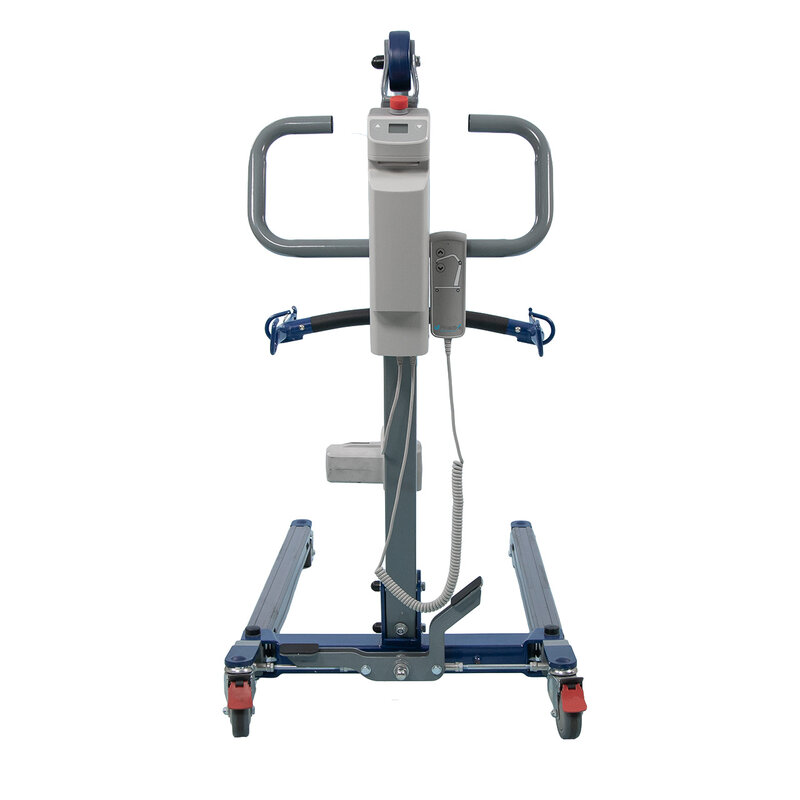

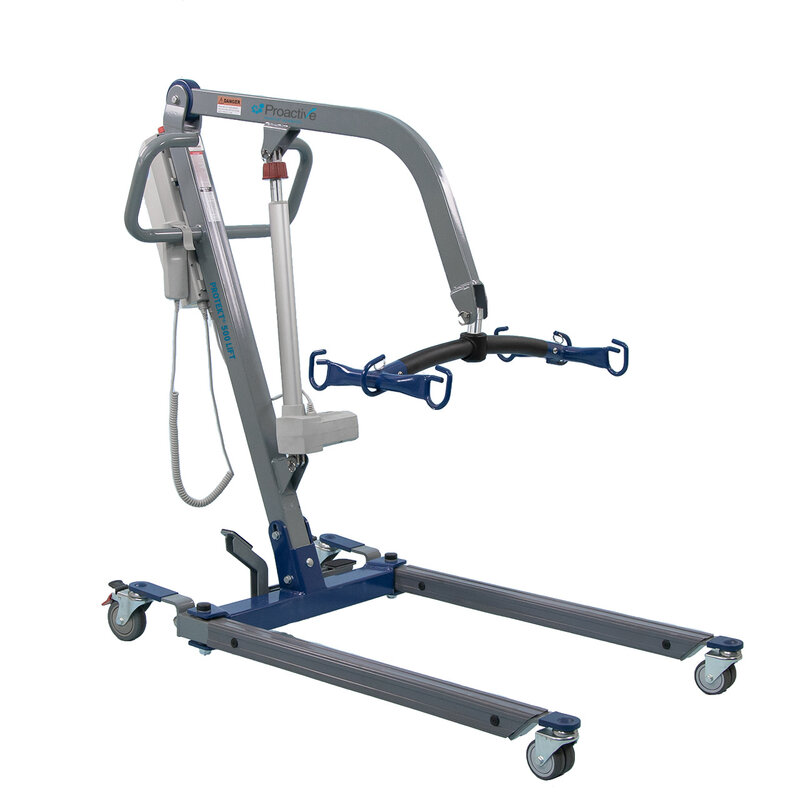

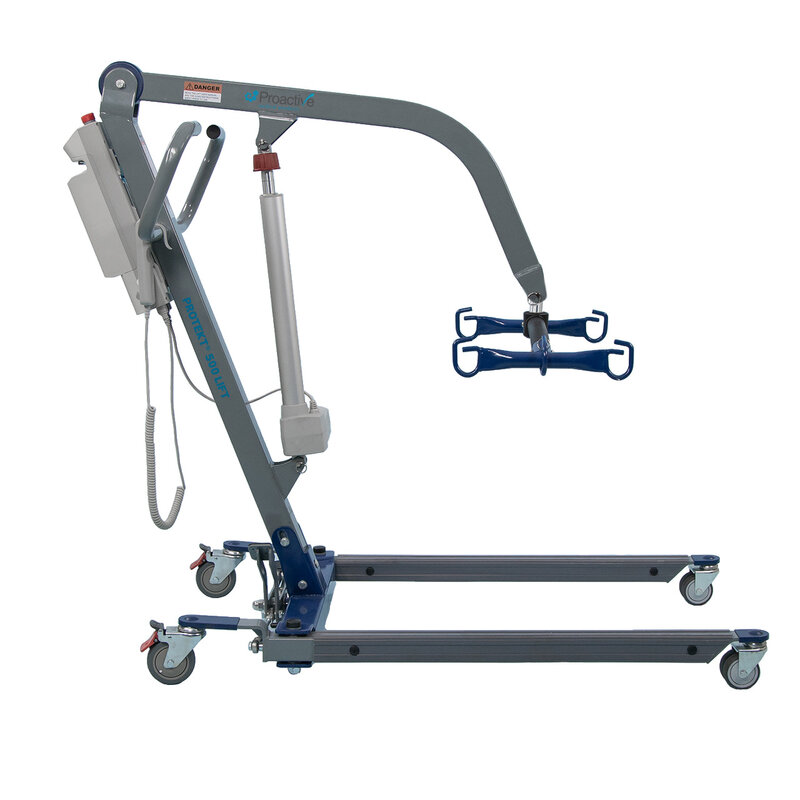

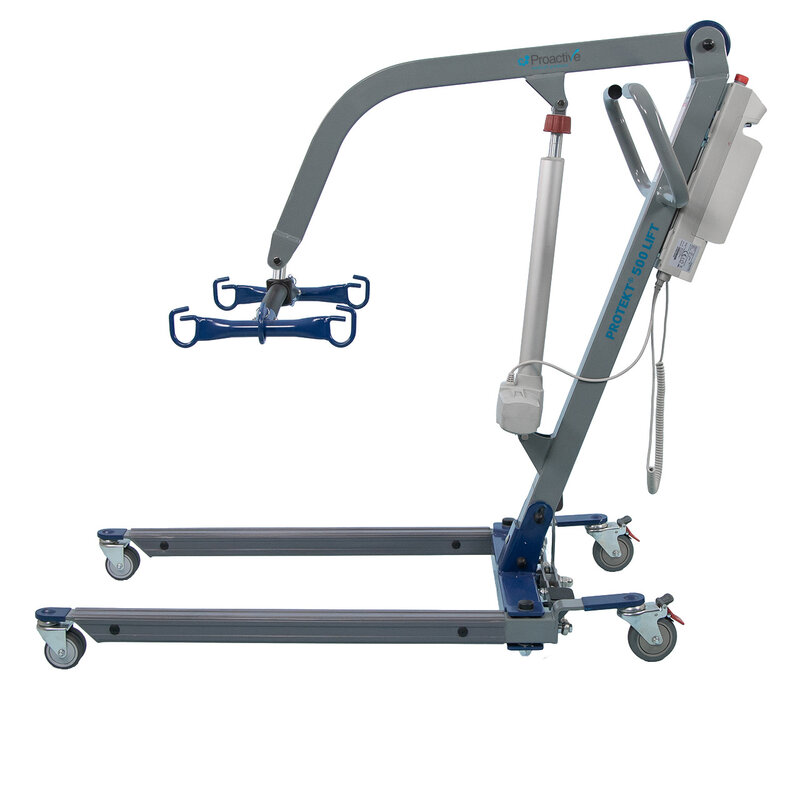

Protekt 500 Lift - Electric Full Body Patient Lift, 500 lb Capacity (E0635)
| Brand: | Proactive Medical |
| Article number: | 33500 |
| Manufacturer SKU: | 33500 |
Electric full body patient lift with a 500 lb capacity, 6 point spreader bar and floor-lift capability.
The high-performance Protekt 500 Lift is the perfect blend of form and function for safe and easy patient transfers. This electric-powered, high quality patient transfer system provides an efficient method to safely move patients, preventing patient and caregiver injuries.
Weight Capacity
500 lb
Lifting Range
28.7" – 71.3"
Unit Weight
109 lb
Features & Benefits
- 500 lb. weight capacity
- 6 point spreader bar allows for multiple sling options, safer patient handling and a wider range of transfers
- Capable of lifting from the floor
- Ergonomically designed foot pedal offers hands free opening of base which adjusts and locks easily for added security
- Manual emergency lowering provides safe response to power loss
- Dual rear locking casters
- 4" rear casters with brake and 3" dual front casters
- Clip free sling hookups improve safety and reduce downtime
- Modular design allows easy parts replacement
- Advanced electronics with auxiliary up/down lift controls
- Optional digital scale
Specifications
| Weight Capacity | 500 lbs. |
| Unit Weight | 109 lbs. |
| Base Length | 47.3" |
| Base External Width - Closed | 26.4" |
| Base External Width - Opened | 39.3" |
| Mast Height | 51.3" |
| Front Caster Height | 4.9" |
| Lifting Height - Lowest | 28.7" |
| Lifting Height - Highest | 71.3" |
| Base Opened Turning Diameter | 62.8" |
| Base Closed Turning Diameter | 58.3" |
Warranty
Electronics: 2 years. Frame: 3 years. Battery: 1 year.
HCPCS / Medicare Code
E0635
